SPECIFICATION

Camera Hardware

Profile

·         1/2.7” 2 Megapixel CMOS sensor

·         5 meter IR illumination distance

·         Minimum illumination: 0 lux with IR LED on

·         Built-in Infrared-Cut Removable (ICR) Filter module

·         Built-in PIR sensor (5 meter)

·         Built-in microphone and speaker

·         10x digital zoom

·         Focal length: 2.8 mm

·         Aperture: F1.8

·         Angle of view:

·         (H) 103° (V) 55° (D) 118°

Image Features

·         Configurable image size, quality, frame rate, and bit rate

·         Time stamp and text overlays

·         Configurable motion detection windows

·         Configurable privacy mask zones

·         Configurable shutter speed, brightness, saturation, contrast, and sharpness

Video Compression

·         Simultaneous H.264/MJPEG format compression

·         H.264 multicast streaming

·         JPEG for still images

Video Resolution

·         16:9 - Up to 30 fps at 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270

·         4:3 - Up to 30 fps at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 600 x 480, 320 x 240

Audio Support

G.711, AAC

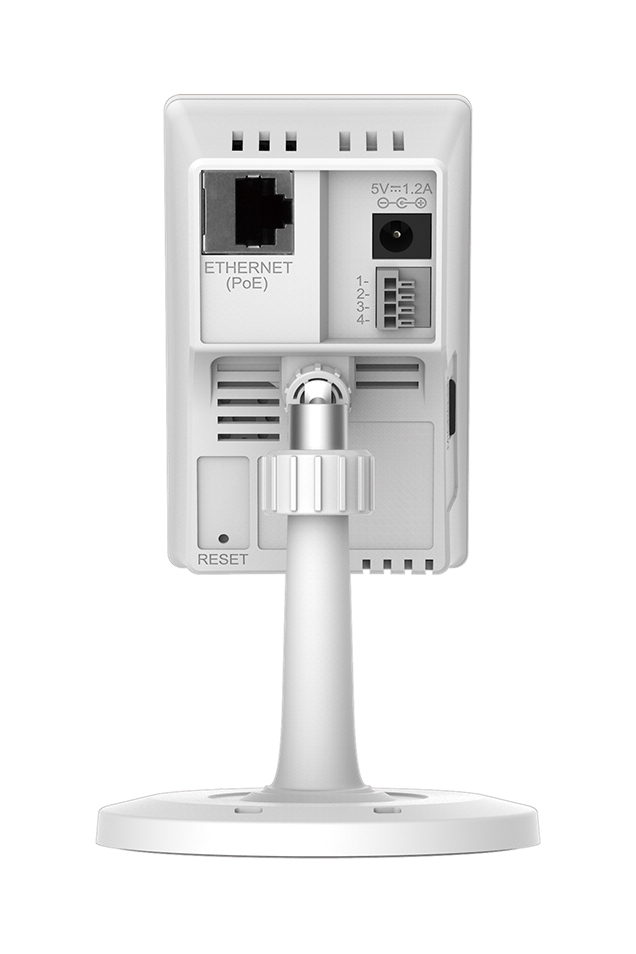

External Device Interface

·         10/100 BASE-T Fast Ethernet port

·         802.3af PoE (DCS-2210L only)

·         IEEE 802.11n/b/g wireless with WPS (DCS-2230L only)

·         DI/DO port

·         microSD/SDHC card slot

Network Protocols IPv6 / IPv4

·         TCP/IP

·         UDP

·         ICMP

·         DHCP client

·         NTP client (D-Link)

·         DNS client

·         DDNS client (D-Link)

·         SMTP client

·         FTP client

·         Bonjour

·         HTTP / HTTPS

·         Samba client

·         PPPoE

·         UPnP port forwarding

·         RTP / RTSP/ RTCP

·         IP filtering

·         QoS

·         CoS

·         Multicast

·         IGMP

·         ONVIF compliant

Security

·         Administrator and user group protection

·         Password authentication

·         HTTP and RTSP digest encryption

System Requirements for Web Interface

·         Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP, Mac OS X 10.5 or above ??

·         Browser: Internet Explorer 7, Firefox 12, Safari 7 or above

Event Management

·         Motion detection, Periodic, Digital Input, System Boot, Network Lost, PIR

·         Event notification and saving/uploading of snapshots/video clips via e-mail, FTP, network storage, or SD card

·         Supports multiple SMTP and FTP servers

·         Multiple event notifications

·         Multiple recording methods for easy backup

Remote Management

·         Take snapshots/video clips and save to local hard drive or NAS via web browser

·         Configuration interface accessible via web browser

Mobile Support

·         mydlink mobile app for iOS and Android mobile devices

D-ViewCam™ System Requirements

Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP

Protocol: Standard TCP/IP

General

·         Weight DCS-2210L: 80 g

·         DCS-2230L: 75 g

·         External Power

·         Adaptor Input: 100 to 240 V AC, 50/60 Hz Output: 5 V DC, 1.2 A, 50/60 Hz

Power Consumption

·         DCS-2210L: Max. 3.5 W

Temperature Operating

·         0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)

Humidity Operating

·         20% to 80% non-condensing Storage: 5% to 95% non-condensing

Certifications

·         CE

·         CE LVD

·         FCC

·         C-Tick
