D-Link

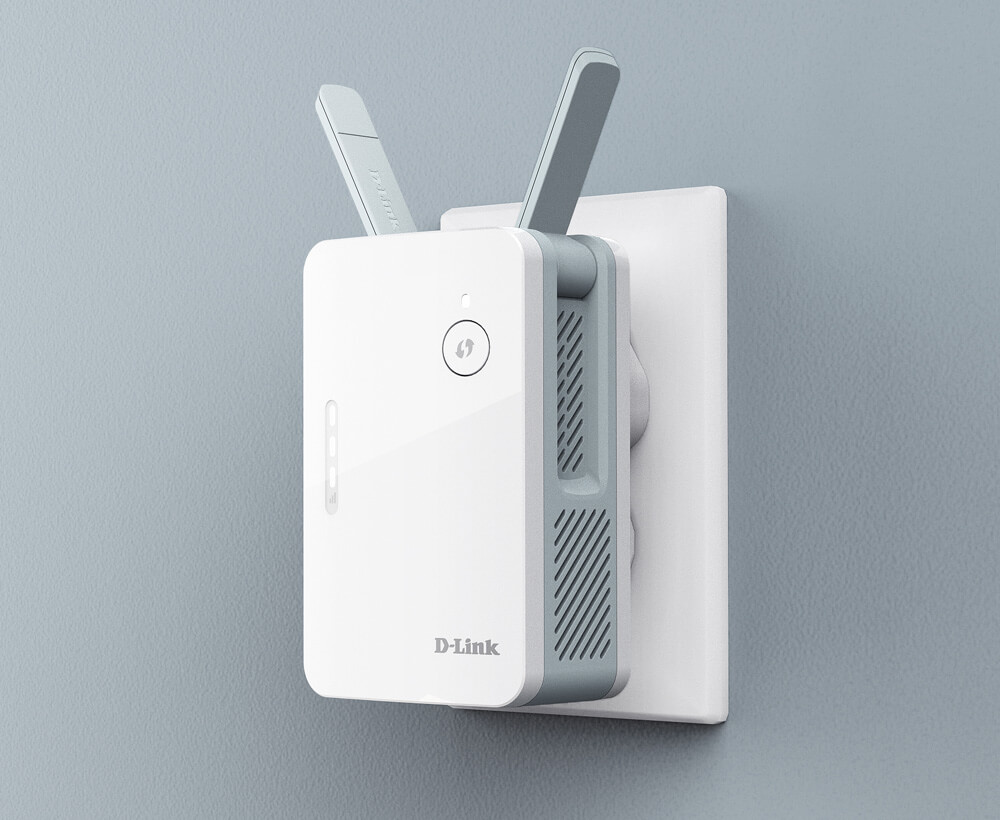

AX1500 Wi-Fi 6 AI Range Extender

• Wi-Fi 6 technology provides faster speeds, greater capacity and less network

congestion

• Wi-Fi 6 speeds up to 1.5 Gbps, built for the modern device-dense smart home

• Dual-band Wi-Fi makes 4K streaming, gaming and video chatting a breeze

• 1 Gigabit Ethernet LAN port provides optional wired connectivity

• D-Link Wi-Fi Mesh lets you add other compatible D-Link AI Series to expand

your network as you wish

• BSS coloring helps organize data packets, making your network more efficient

and improving overall Wi-Fi 6 performance

• Mesh Smart Roaming technology auto connects you to the strongest signal

• Space-saving wall plug design

• LED wireless signal strength indicator

• Wi-Fi Protected Setup™ (WPS) Push Button

• Free D-Link Ai app

Device Interfaces 1 x Gigabit Ethernet LAN port, 1 x Reset button, 1 x

WPS button

LEDs Power Status/WPS, 3 segment Wi-Fi Signal Strength

Indicator

Antennas Two external antennas

Operating Frequency 2.4 - 2.4835 GHz, 5.15 - 5.35 GHz

Functionality

IEEE Standard IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab

Data Signal Rate 2.4 GHz (up to 300 Mbps), 5 GHz (up to 1201 Mbps)1

Security Protocol WPA/WPA2TM - Personal, WPA2/WPA3 - Personal, WPA3

Only, WPS (PBC)

Mesh IEEE 802.11k/v, D-Link Wi-Fi Mesh

Software

Device Management D-Link Ai app (iOS and Android), Web UI

Features D-Link One-Touch extender setup

Physical

Power Input 100 to 240 VAC, 50/60 Hz

Max. Power Consumption 11 W ± 5%

Operating Temperature 0 to 40 °C (32 to 104 °F)

Storage Temperature -20 to 70? C (-4 to 158 °F)

Operating Humidity 10% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

Weight 161 g (5.7 oz)

Dimensions 105 x 63.5 x 50 mm (4.13 x 2.50 x 1.97 in)

Certifications FCC, IC, CE, UL
