SPECIFICATION

Features

Ideal for Business
•     Self-configuring cluster, enabling effortless provisioning
•     Up to 32 virtual access points may be created from a single access point
•     Flexible QoS with WMM
•     802.3af Power Over Ethernet enables installation in hard to reach locations

High Performance Connectivity
•     Beamforming technology
•     Bandsteering for efficient traffic management
•     Dual Gigabit Ethernet LAN ports
•     UL2043 certified chassis (Plenum-rated SKU)
•     Up to 8 DWL-6610AP units may form a self-configuring cluster

Trusted Security
•     WPA/WPA2 Personal
•     WPA/WPA2 Enterprise
•     MAC address filtering
•     Rogue AP detection

Technical Specifications

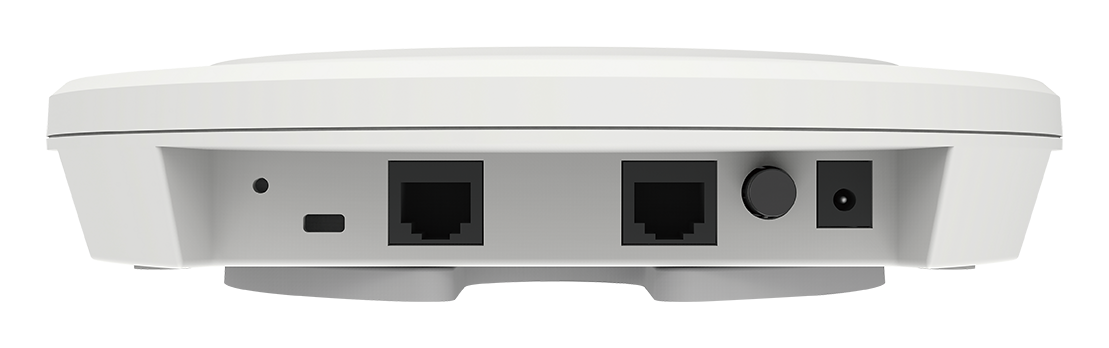

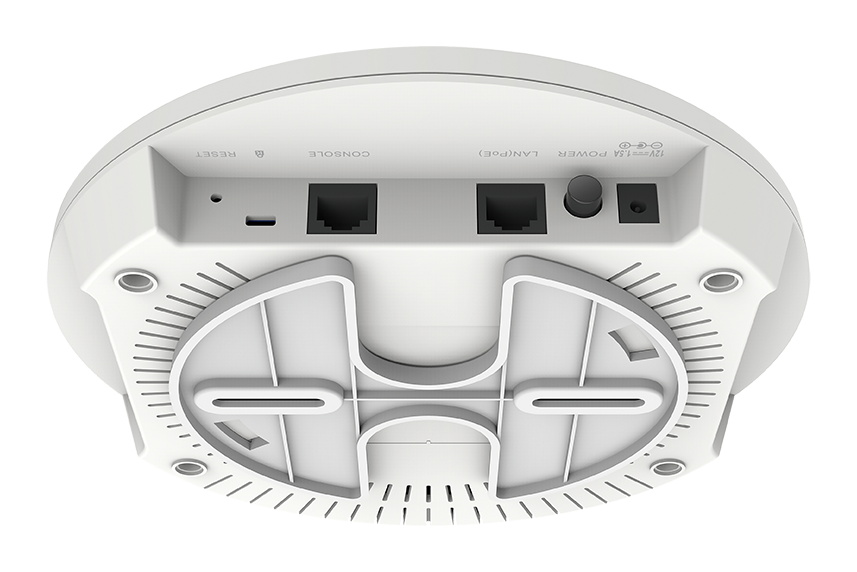

Interfaces:

•     802.11b/g/n 2.4 GHz wireless
•     802.11ac 5 GHz wireless
•     One 10/100/1000 LAN port
•     RJ45 console port
•     Factory reset button
•     Power connector

Antenna :

•     Internal omnidirectional antennas

•      4 dBi for 5 GHz, 4 dBi for 2.4 GHz

Operating Channel :

•     2.4 / 5 GHz


Web-based User Interface:

•     HTTP/HTTPS

Command Line :

•     RJ45 Serial Console
•     Telnet/ SSH
•     SNMP

SSID Security :

•     Up to 32 SSIDs, 16 per radio
•     802.1Q VLAN
•     Station Isolation

Wireless Security :

•     WPA Personal/ Enterprise

•     AES and TKIP

Detection & Prevention :

•     Rogue and Valid AP Classification

Authentication :

•     MAC Address Filtering

Dimensions :

•     205 x 39 mm (8.07 x 1.54 in.)

Weight :

•     0.476 kg

Power Adapter :

•     Input: 100 to 240 V AC

•     12 V/1.5 A external power adapter

Power over Ethernet :

•     10/100/1000 Mbps PoE  input

Power Method :

•     Powered by PoE or 12 V / 2 A

Enclosure :

•     Bottom cover – plastic
•     Top cover – plastic
•     UL2043 certified chassis

Temperature :

•     Operating: 0 to 40 °C (32 to 104 °F)

•     Storage: -20 to 65 °C (-4 to 149 °F)

Humidity :

•     Operating: 10% to 90% non-condensing

Certifications :

•     CE
•     EN 301 893 V1.7.1 (2012-06) (DFS/TPC)
•     EN 300 328 V1.8.1 (2012-06)
•     FCC
•     IC
•     cUL
•     LVD
•     UL2043 (for plenum-rated SKU only)
•     C-Tick
•     BSMI
•     NCC
•     Wi-Fi
