D-Link

Wireless AC1200 Outdoor Dual Band Access Point

DAP-3662

The DAP-3662 Wireless AC1200 Concurrent Dual Band Outdoor PoE Access Point is a versatile, high power outdoor access point designed with harsh weather resistant features making it an ideal solution for creating outdoor wireless hot spot networks. In addition to outdoor, it can be installed in environments where flexible wireless access and harsh conditions exists including; manufacturing plants, industrial automation, convention halls, stadium facilities, airports, school campuses, golf courses, marinas or virtually any venue requiring a robust wireless solution.

Features

High-performance Connectivity

• IEEE 802.11ac wireless

• Up to 1200 Mbps1

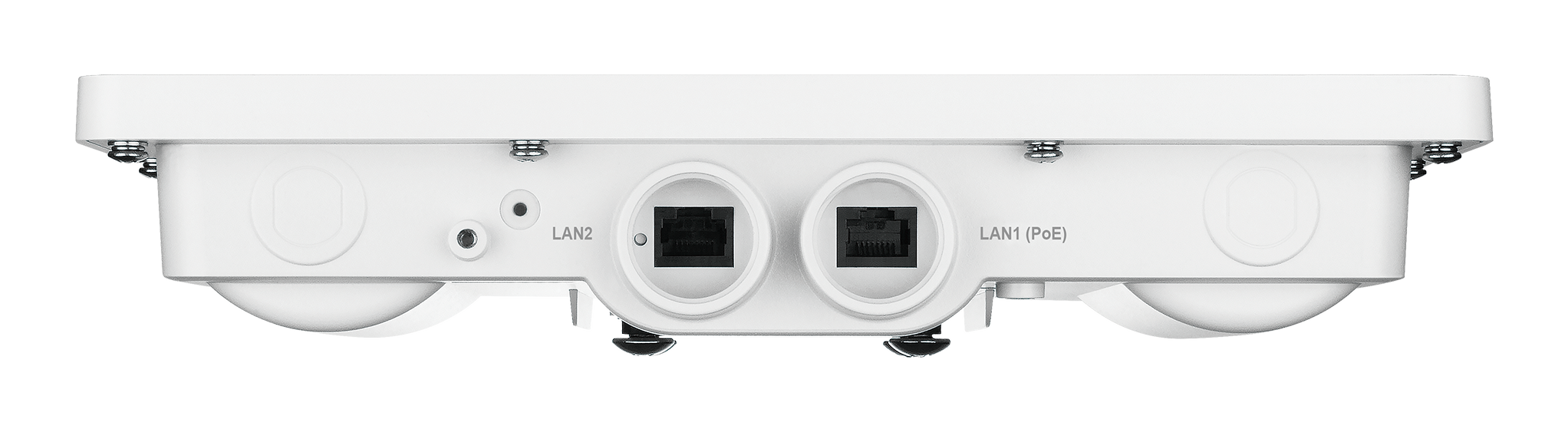

•Two Gigabit LAN ports

Made for Outdoor Environments

• IP68 Water and Dust-Proof housing

•Weather Resistant to temperatures between -30 and 60°C

•Gore-Tex® Technology repels liquid water while allowing for heat and humidity dissipation

Advanced Software Features

•Simultaneous dual-band connectivity for increased network capacity

•Traffic control/QoS

•Internal RADIUS server

•Web redirection

•WPA/WPA2 - Enterprise/Personal

•WPA2 - PSK/AES over WDS

• MAC address filtering

•ARP spoofing prevention

•WLAN partition

Convenient Installation

•Supports 802.3af Power over Ethernet

•Wall and pole mounting hardware included

SPECIFICATION

Device Interfaces :

2 Gigabit LAN Port (LAN1 supports PoE)

Standards :

IEEE 802.11a/b/g/n/ac ; IEEE 802.3u/ab/af

Wireless Frequency Range :

2.4 GHz band: 2.4 GHz to 2.4835 GHz ; 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz

Antennas :

Two internal 6 dBi for 2.4 GHz ; Two internal 6 dBi for 5 GHz

Maximum Output Power :

26 dbm for 2.4GHz ; 26 dbm for 5GHz

Security :

WPA-Personal ; WPA-Enterprise ; WPA2-Personal ; WPA2-Enterprise ; WEP 64/128-bit encryption
SSID broadcast disable ; MAC address access control ; Network Access Protection (NAP) ; Internal RADIUS server

Network Management :

Telnet ; Secure Telnet (SSH) ; HTTP ; Secure HTTP (HTTPS)
Traffic control ; SNMP ; D-Link Central WiFiManager ; AP Array

Dimensions :

277 x 240 x 50 mm

Weight :

981 grams

Operating Voltage :

48 V DC +/- 10%, or 802.3af PoE

Maximum Power Consumption:

12.5 Watts

Temperature :

Operating: -30 to 60 °C ; Storage: -30 to 65 °C

Humidity :

Operating: 10% to 90% non-condensing ; Storage: 5% to 95% non-condensing

Certifications :

FCC ; IC ; CE ; C-Tick ; UL ; Wi-Fi® Certified ; IP68

No	Description	Title	Type	File Size
1	Additional Downloads	DAP-3662 CWM Module	exe	2.6 MB
2	Installation Guide	DAP-3662 QIG	pdf	1.05 MB
3	Firmware	DAP-3662 H/W A1 ; FW v1.05 -rc066	bin	10.31 MB
4	Datasheet	DAP-3662 Datasheet	pdf	0.94 MB
5	User Manual	DAP-3662 User Manual	pdf	10.23 MB
6	Datasheet	DAP-3662 Datasheet (For Egypt Only)	pdf	1 MB
