D-Link

24-port SFP and 4 10GBase-X SFP + Managed Layer2 Switch

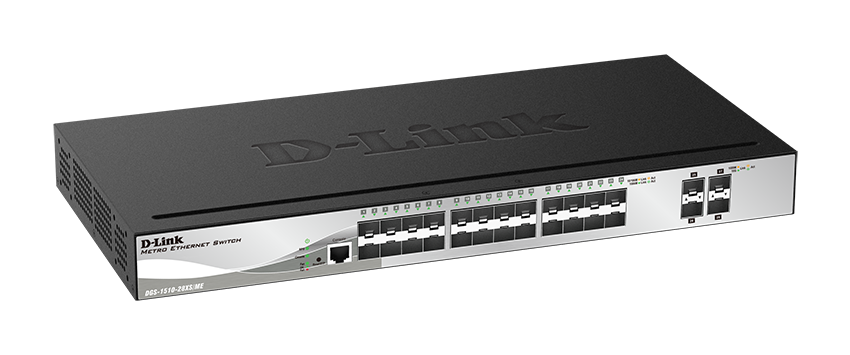

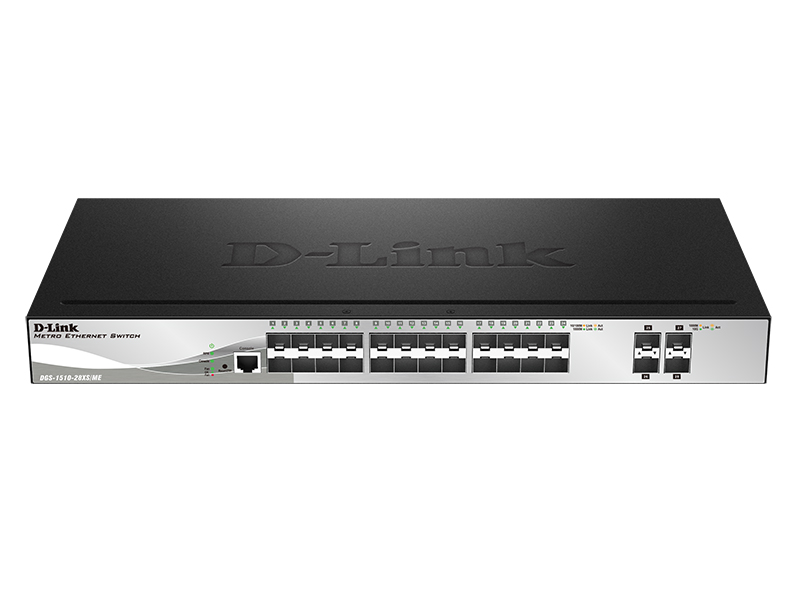

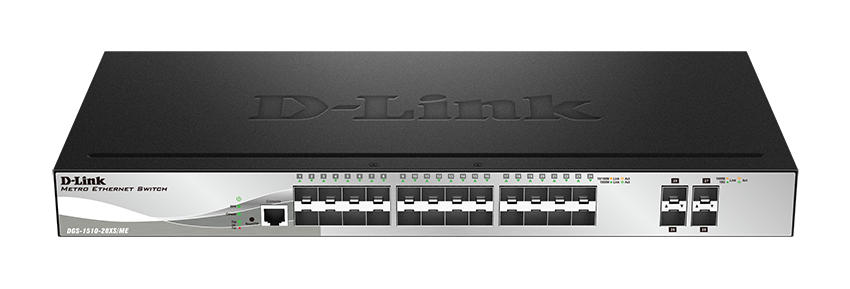

DGS-1510-28XS

Description:

Switch DGS-1510-28XS / ME is the ideal solution for applications in Metro Ethernet networks. The switch is equipped with 24-port 1000Base-X SFP ports and 4 10GBase-X SFP +. Protection against static electricity ensures the stability to power surges, and a complete set of security and authentication features protect your network against internal and external threats.

Reliability

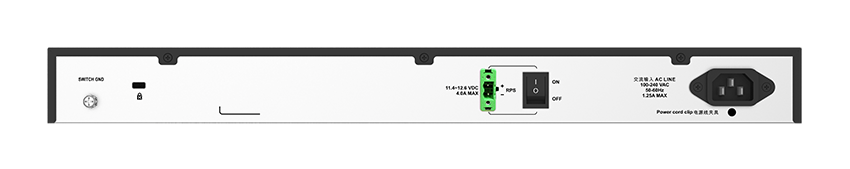

All Ethernet-port Switch DGS-1510-28XS / ME are equipped with built-in protection against static electricity up to 6 kW, which allows the device to protect against voltage surges. In the event of disruptions in the power supply switch, an additional connector for redundant power supply DPS-500A / DPS-500DC or DC power source with a voltage of 12 V. The switches also support Ethernet Ring Protection technology Switching (ERPS, ITU-T G.8032) , whereby the recovery operation of the ring is less than 50 ms after the crash. In addition, the switch supports port aggregation functionality based 802.1AX standard application which allows you to combine multiple ports into a group while increasing bandwidth and increasing fault tolerance connections to ensure smooth operation and load balancing across multiple network devices.

Triple Play Service

The DGS-1510-28XS / ME switch implemented a wide range of Layer 2 multicast features including IGMP / MLD Snooping, Fast Leave and filtering. Support for this functionality provides the ability to work with IPTV-services, which are gaining popularity with each year are increasingly in demand in the market. The use of IGMP / MLD Snooping functions on the basis of the host provides the connection of multiple IPTV-subscribers to one network interface. ISM VLAN profiles allow users to quickly and easily assign or replace the pre-installed settings for subscribers multicast ports. IGMP Authentication Support eliminates the possibility of unauthorized IPTV-subscription due to conduct authentication set-top boxes.

Quality of Service

Switch DGS-1510-28XS / ME supports advanced QoS functionality (Quality of Service) to provide high-quality service Triple Play. Packet classification is based on the various header fields or a user-defined packet content, enabling prioritization of traffic.With bandwidth management service providers will be able to determine the level of bandwidth of incoming / outgoing channel per port increments up to 64 kbit / s.

Simple operation, efficient troubleshooting

Realized in the switch support extended functionality OAM (Operation, Administration and Management) allows you to greatly simplify maintenance and troubleshooting. With the Cable Diagnostic feature, you can remotely monitor the status of the Ethernet-cable and determine the location of the fault, allowing the provider to reduce equipment maintenance costs. Function Connectivity Fault Management (CFM, IEEE 802.1ag) is designed for monitoring, troubleshooting, and Ethernet-in, giving providers the ability to perform the connection test, isolate network issues, and identify user segments such segments.

Security and Authentication

The DGS-1510-28XS / ME switch provides advanced user authentication functionality / devices, including 802.1X, access control MAC-based (MAC). MAC functions allow network administrators to user / device and manage network security authentication without the need to install client software, which is very important, if the software is installed on the client hardware is not possible. Authentication node basis provides precise access control for each network device. For integration with billing systems and services implemented RADIUS support. Provided in the switch DGS-1510-28XS / ME function of IP-MAC-Port Binding (IMPB) provides strong binding to the addresses and interfaces, and ARP Spoofing Prevention - protect the network from attacks such as Man-In-The-Middle and ARP Spoofing.

SPECIFICATION

Hardware
Interfaces	• 24-port 1000Base-X SFP • 4-port 10GBase-X SFP + • Auto MDI / MDIX
indicators	• Power (per device) • Redundant Power Supply (RPS) (per device) • Console (on the device) • Link / Activity / Speed ??(per port) • Fan Error
Console port	• RJ-45
Network cables	• UTP category 5, 5e (max 100 m.); EIA / TIA-568 100-ohm STP (max. 100 m)

Performance
switching matrix	• 128 Gbit / s
The maximum burst rate	• 95,24 Mpps
transmission method	• Store-and-forward
MAC-address table	• 16K entries
Update MAC- addresses	• Up to 512 static MAC-address entries
packet buffer	• 1.5 MB
Flash-memory	• 32 MB

Software
Standards and functions	• IEEE802.3 • IEEE802.3u • IEEE802.3ab • IEEE 802.3ae 10 GbE • IEEE802.3az • IEEE802.3z • IEEE 802.3x Flow Control
Ctekirovanie	• Virtual Stacking - D-Link Single IP Management - Up to 32 devices connected to the virtual stack
Layer 2 Features	• MAC-address table: 16K • Flow Control - 802.3x Flow Control - HOL blocking prevention - Back pressure • Jumbo-frames up to 9K • Spanning Tree Protocols - 802.1D STP - 802.1w RSTP - 802.1s MSTP - BPDU filtering - Root Restriction • Detection Function Loopback detection loops • Link aggregation - Compatible with 802.1AX and 802.3ad • Port Mirroring - Supports 1 Mirroring group - Modes: One-to-One, Many-to-One, Flow-based (ACL) • Ethernet Ring Protection Switching (ERPS) • L2 Protocol Tunneling (L2PT)
Multicast Layer 2	• IGMP Snooping - IGMP v1 / v2 Snooping, v3 awareness - Supports 1024 groups - IGMP Snooping Fast Leave port-based / node - Report Suppression - IGMP Authentication - Filtering IGMP • MLD Snooping - MLD v1, MLD v2 awareness - Supports 1024 groups - MLD snooping Fast Leave port-based / node
VLAN	• VLAN Groups - Max. VLAN 4094 - VLAN port-it based - VLAN MAC-based address • 802.1Q Tagged VLAN • GVRP - Max. 255 Dynamic VLAN • 802.1v Protocol VLAN • 802.1Q Tagged VLAN • Double VLAN (Q-in-Q) - Q-in-Q port-based • ISM VLAN • VLAN Translation • VLAN Trunking
Level 3 Options	• Max. 1024 ARP entries - Support for 255 static ARP entries • Gratuitous ARP support • IPv6 Neighbor Discovery (ND) • IP-16 interface • The default route • Static route - Support for 64 IPv4 static routes - Supports 32 static IPv6 routes
Quality of Service (QoS)	• CoS based on: - Port Switch - 802.1p priority queues - VLAN ID - MAC-address - Ether Type - IPv4 / IPv6-Address - DSCP - ToS - Protocol Type - TCP / UDP-port - Class IPv6-traffic - IPv6 flow label - The contents of the package, a user-defined • Bandwidth Management - Based on the port (included with a pitch of up to 64 kbit / s) - On the basis of the stream (incoming, in increments of up to 64 kbit / s) - For output queue (in increments of up to 64 kbit / s) • Queue Processing - Strict Priority Queue (SPQ) - Weighted Round Robin (WRR) • QoS schedule • Three color marking - CIR / PIR min. Step 8 kbit / s - Two Rate Three Color Marker (trTCM), CBS / PBS - Single Rate Three Color Marker (srTCM), CBS / EBS • 8 output queues
Access Control Lists (ACL)	• ACL based - Port Switch - 802.1p Priority - VLAN ID - MAC-address - Ether type - IPv4 / v6-address - Class IPv6 traffic - IPv6 flow label - DSCP - ToS - Protocol Type - Non-TCP / UDP port - The contents of the package, a user-defined • Up to 1024 access rules for incoming traffic • ACL on schedule • ACL statistics • CPU interface filtering
AAA	• 802.1X - Management of the port-based access - Management node-based access - Dynamic VLAN assignment • Access Control MAC-based - Management node-based access - Management of the port-based access - Dynamic VLAN assignment • Microsoft® NAP (IPv4) • Guest VLAN • RADIUS (IPv4) • TACACS (IPv4) • TACACS + (IPv4) • XTACACS + (IPv4) • Trusted Host • Maintaining RADIUS accounting • 4 user account level
Security	• SSH v1 / v2 • SSL v1 / v2 / v3 • Port Security - Up to 64 MAC-addresses on port • Protection against broadcast / multicast / unicast storm • IP-MAC-Port Binding (IMPB) - Checking the ARP-packets - Check the IP-packet - DHCP Snooping - DHCPv6 Snooping ¹ - DHCPv6 Guard ¹ - IPv6 Route Advertisement (RA) Guard ¹ - IPv6 ND Snooping ¹ - IPv6 ND Inspection ¹ • Traffic Segmentation • D-Link Safeguard Engine • L3 Control Packet Filtering • NetBIOS / NetBEUI Filtering • DHCP Server Screening • Filtering DHCP-enabled clients • ARP Spoofing Prevention • Protection BPDU attacks • Prevents DoS attacks
OAM	• Cable Diagnostics • 802.3ah Ethernet Link OAM • Dying Gasp • 802.1ag Connectivity Fault Management (CFM)
Control	• Web-interface (supporting IPv4 / IPv6) • Command Line Interface (CLI) • Telnet-server / client (support for IPv4) • TFTP / FTP-client (support for IPv4) • ZModem • Logging of input commands • IPv6 Neighbor Discovery • SNMP v1 / v2c / v3 (support IPv4) • SNMP Traps • System Log - Max. Number of log entries: 10 000 • SMTP (IPv4) • RMON v1: - Support for groups 1, 2, 3, 9, • RMON v2: - Support group Probe Config • 802.1AB LLDP - LLDP-MED • BootP / DHCP-Client (supports IPv4) • Automatic DHCP setting ¹ • DHCP Relay (support IPv4) - DHCP Relay Option 60, 61 and 82 - DHCP Client Option 12 • Adding tag PPPoE Circuit-ID ¹ • Support for multiple copies of the Software (Multiple Images) • Support for multiple copies of the configurations (Multiple Configurations) • Flash File System • CPU Monitor • Memory Monitoring • SNTP (support IPv4) • debug Commands • Password recovery • Password Encryption • Ping • Traceroute ^• Microsoft ® NLB (Network Load Balancing) (support for IPv4) • Zero Touch Provisioning (ZTP) ¹ • sFlow ¹ • D-Link Network Assistant ¹ • Supports Real Time Clock (RTC)
MIB Standards	• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 • RFC1212 • RFC1213 • RFC1215 • RFC1493, RFC4188 • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 • RFC271, RFC1757, RFC2819 • RFC2021 • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 • RFC2668 • RFC2674, RFC4363 • RFC2618 • RFC4022 • RFC4113 • RFC3298 • RFC2620 • RFC2925 • RFC2465 • RFC2466 • RFC4293 • RFC3289

Physical parameters
dimensions	• 440 x 210 x 44 mm
The weight	• 2,1 kg

terms of Use
MTBF (hours)	• 574974
heat release	• 157,94 BTU / hr
Food	• From 100 to 240 V AC, 50 Hz ~ 60
Max. power consumption	• 53.4 W
Power consumption in the standby mode	• 13,0 W / 100 V • 13.5 W / 240
Ventilation system	• 2 fan with automatic speed control
Noise level	• 47.8 dB
Protection against static electricity	• All Ethernet ports support standard IEC61000-4-5 built-in ESD protection (up to 6 kV)
Temperature	• Operating: -5 to 50 ° C • Storage: -20 to 70 ° C
Humidity	• Operating: 0% to 95% non-condensing • Storage: 0% to 95% non-condensing
