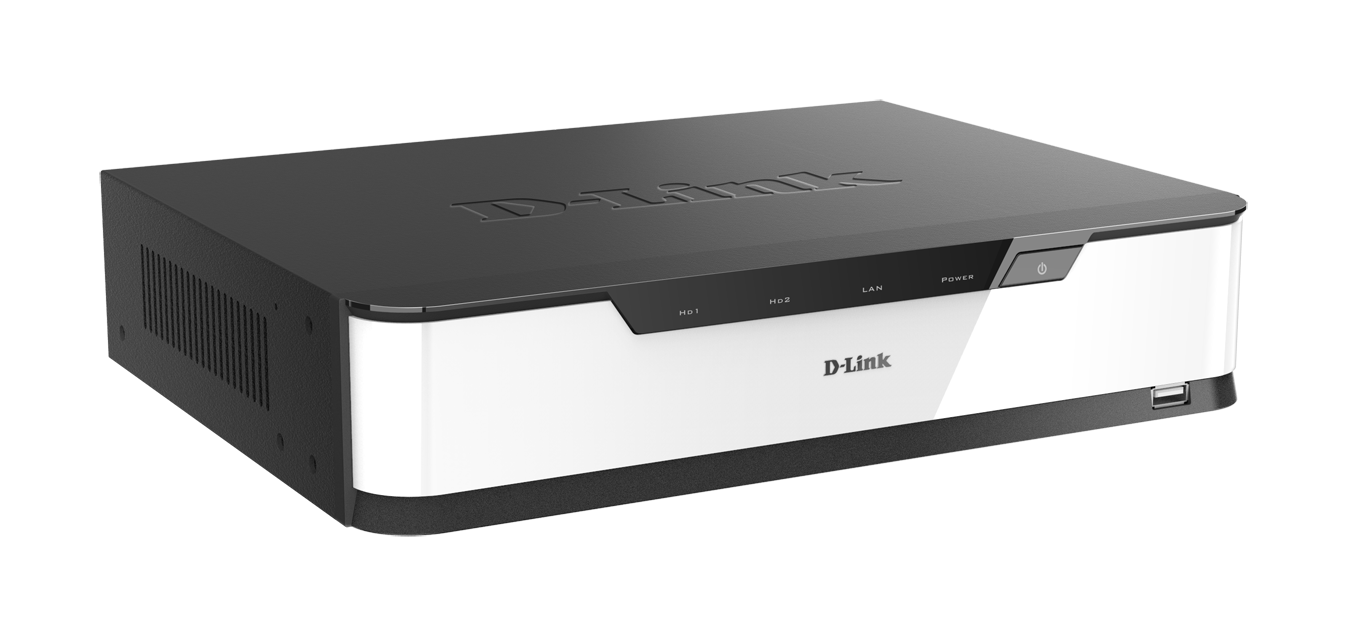

JustConnect 16-Channel PoE Network Video Recorder
DNR-2020-04P
Versatile Monitoring
Users are provided with a variety of options for viewing and organizing camera footage onscreen. Featuring live viewing of multiple channels, users can simply drag and drop selected cameras to the viewing area. Users can also control pan/tilt/zoom (PTZ) functions from within the interface. A single camera may be viewed full-screen with two-way audio support. Optional Digital In/Digital Out (DI/DO) connections to triggers such as door and window sensors allow for easy event-based recording.
Extensive Recording Functionality
The DNR-2020-04P’s clear interface allows for easy configuration of many functions including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. E-map support simplifies camera setup and management. The NVR also provides event recording based on specific triggers such as when motion is detected and notifications can be set so that an email will be sent to alert the administrator whenever an event occurs.
Secure Storage
Administrators may filter external connections to the NVR by IP address, limiting access and thus increasing security. Administrators may also manage access privileges for users by specifying the cameras they may monitor. The
NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.
Bundled NVR Software
The NVR software bundled with the DNR-2020-04P consists of four main components including an NVR Search Utility, Playback Manager, Remote Backup, and Verification Tool. The NVR Search Utility lets the administrator
easily find the DNR-2020-04P on a network. The Playback Manager includes a clean and simple web GUI that allows users to play, search, or export video. Completing the package are the Remote Backup tool and Verification Tool to help manage backups and ensure the authenticity of video recordings.
Smooth Streaming from Anywhere
The DNR-2020-04P also enables users to remotely view and manage the NVR from anywhere via a web browser. The Gigabit Ethernet port provides superior bandwidth for viewing 16 camera streams simultaneously, so
critical moments can be monitored and captured at all times. Additionally, using the mobile app allows administrators easy access for monitoring the DNR-2020-04P using mobile devices.
