SPECIFICATION

• General features:
  Camera

  • 1/4" 1 Megapixel progressive CMOS sensor

  • Minimum illumination: 1.0 lux

  • 10x digital zoom

  • Fixed length 3.45 mm

  • Aperture: F2.0

  • Angle of view:

    (H) 57.8°

    (V) 37.8°

    (D) 66°



  Image Features

  • Configurable image size, quality, frame rate, and bit rate

  • Time stamp and text overlays

  • Configurable motion detection windows

  • 3 configurable privacy mask zones

  • Configurable shutter speed, brightness, saturation, contrast, and sharpness



  Video Compression

  • Simultaneous H.264/MPEG-4/MJPEG format compression

  • JPEG for still images



  Video Resolution

  • 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 at frame rates up to 30 fps

  • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 at frame rates up to 30 fps



  Audio Support

  • G.726

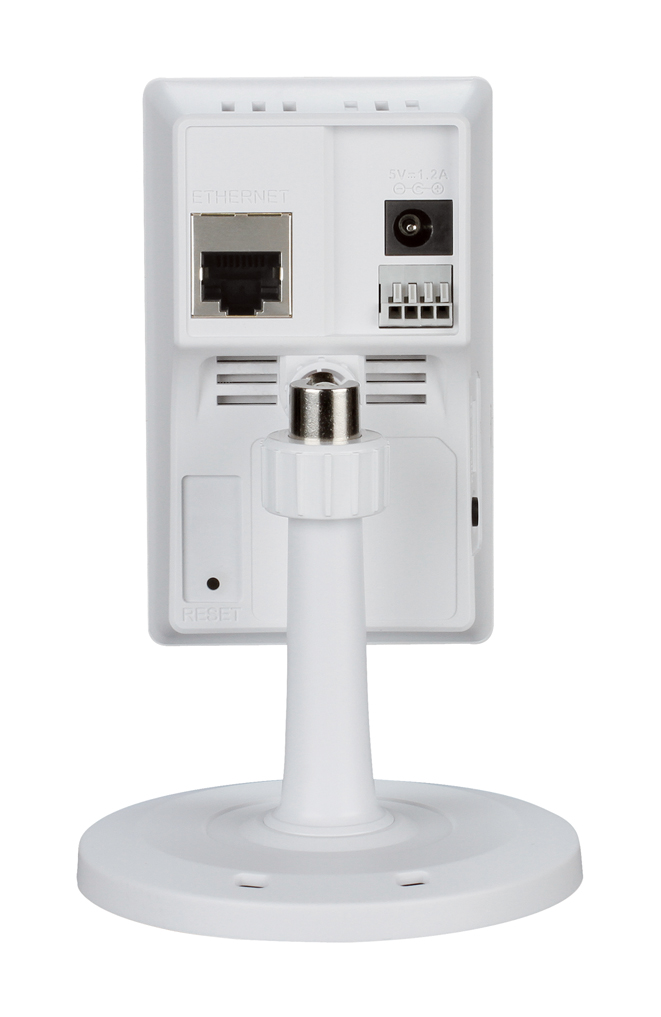

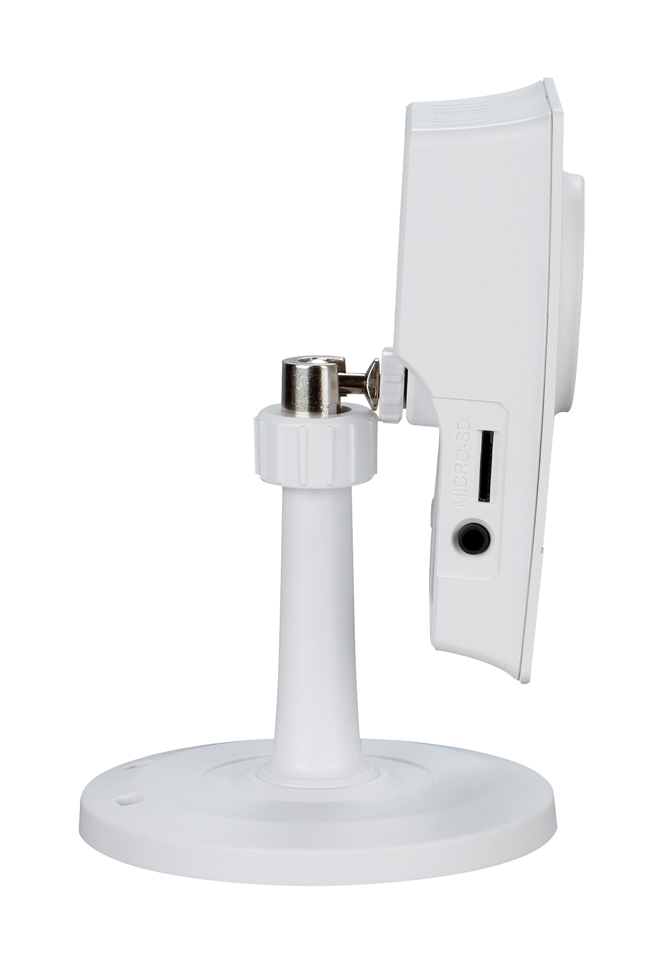

  External Device Interfaces

  • 1 DI / 1 DO

  • MicroSD card slot

  • Built-in microphone

  • 3.5 mm audio output jack



  Network Protocols

  • IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF Compliant



  Security

  • Administrator and user group protection

  • Password authentication



  System Requirements for Web Interface

  • Operating System: Microsoft Windows 7/Vista/XP/2000

  • Browser: Internet Explorer, Firefox, Netscape, Opera



  Event Management

  • Motion detection

  • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP

  • Supports multiple HTTP, SMTP, and FTP servers

  • Multiple event notifications

  • Multiple recording methods for easy backup



  Remote Management

  • Configuration accessible via web browser

  • Take snapshots/video clips and save to local hard drive or NAS via web browser



  Mobile Support

  • Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support



  D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 7/Vista/XP

  • Web Browser: Internet Explorer 6 or higher

  • Protocol: Standard TCP/IP



  D-ViewCam™ Software Functions

  • Remote management/control of up to 32 cameras

  • Viewing of up to 32 cameras on one screen

  • Supports all management functions provided in web interface

  • Scheduled motion triggered, or manual recording options


  Physical & Enviromental

  Power Input

  • 5 V DC, 1.2 A, 50/60 Hz



  Max. Power Consumption

  • 2 watts



  Operating Temperature

  • 0° to 40°C



  Storage Temperature

  • -20° to 70°C



  Humidity

  • 20% to 80% non-condensing



  Weight

  • 68 g
