SPECIFICATION

General Specification

• 1/4” CMOS Sensor
•  Removable IR-cut Filter: Auto/Schedule
• Manual
• 3A Control: AGC, AW B, AES
• BLC: Backlight compensation??Built-in IR LED (20 meter)
• DC Iris Varifocal 3.7 ~ 12 mm, F 1.4 ~ 2.8

View Angle

• Vertical: 56.9° (W) ~ 17.1° (T)
• Horizontal: 76.9° (W) ~ 22.7° (T)
• Diagonal: 97.6° (W) ~ 28.4° (T)

IR LED

• 20 meter illumination distance with 12
• LEDs and light sensor
• Minimum illumination:
• Color: 0.2 lux (F1.4)
• B/W: 0.02 lux (F1.4) without IR LED
• B/W: 0 lux with IR LED on
• 3-axis angle:
• Vertical: 120
• Horizontal: 340
• Rotational: 300

SYSTEM REQUIREMENTS

Operating System: Microsoft Windows XP, Vista, Windows 7
Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4

Networking Protocol

IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTP, HTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP
(D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP

BUILT -IN NETWORK INTERFACE

10/100BASE-TX Fast Ethernet

VIDEO Codecs

• H.264
• MPEG4
• MJPEG
• JPEG for still images

RESOLUTION

• 640 x 480 at up to 30 fps
• 320 x 240 at up to 30 fps
• 160 x 120 at up to 30 fps

VIDEO FEATURES

• Adjustable image size, quality and bit rate
• Time stamp and text overlays
• 3 configurable privacy masks
• Flip & mirror

Audio Codecs

• G.726
• G.711

Power input

• 12 V DC 1.25 A
• 24 V AC
• 802.3af PoE

Physical and Environmental

• IP-66 weather-proof standard
• IK-10 vandal-proof standard
• Built-in heater and fan

WEIGHT

1148 g

Operation Temperature

-20 to 50 ?C (-4 to 122 ?F)

Storage Temperature

-20 to 70 ?C (-4 to 158 ?F)

Relative Humidity

20% to 80% non-condensing

Certifications

• FCC
• CE

Mounting Acessories(Not included with Camera)

• DCS-33-1
• Height: 60 mm (2.36 inches)
• Diameter: 190 mm (7.48 inches)
• Weight: 272.5 g (0.60 lbs)

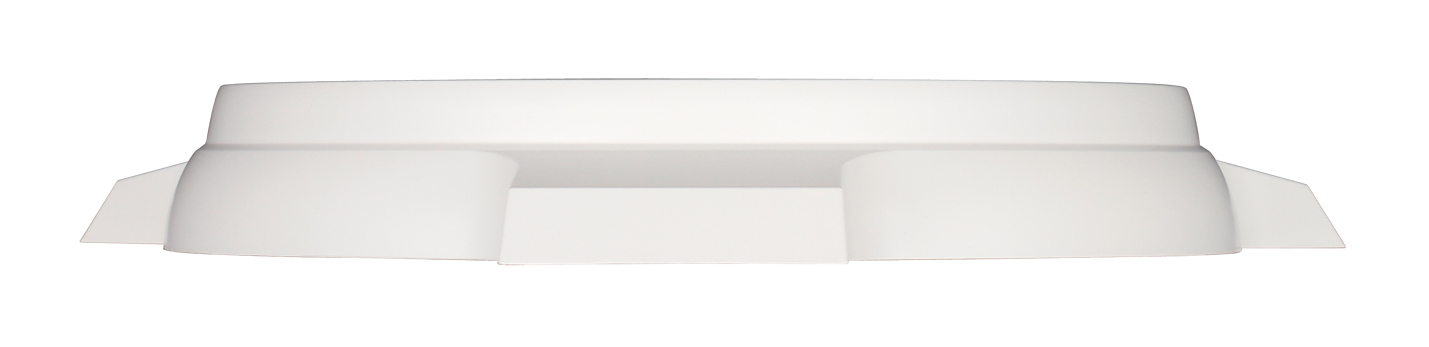

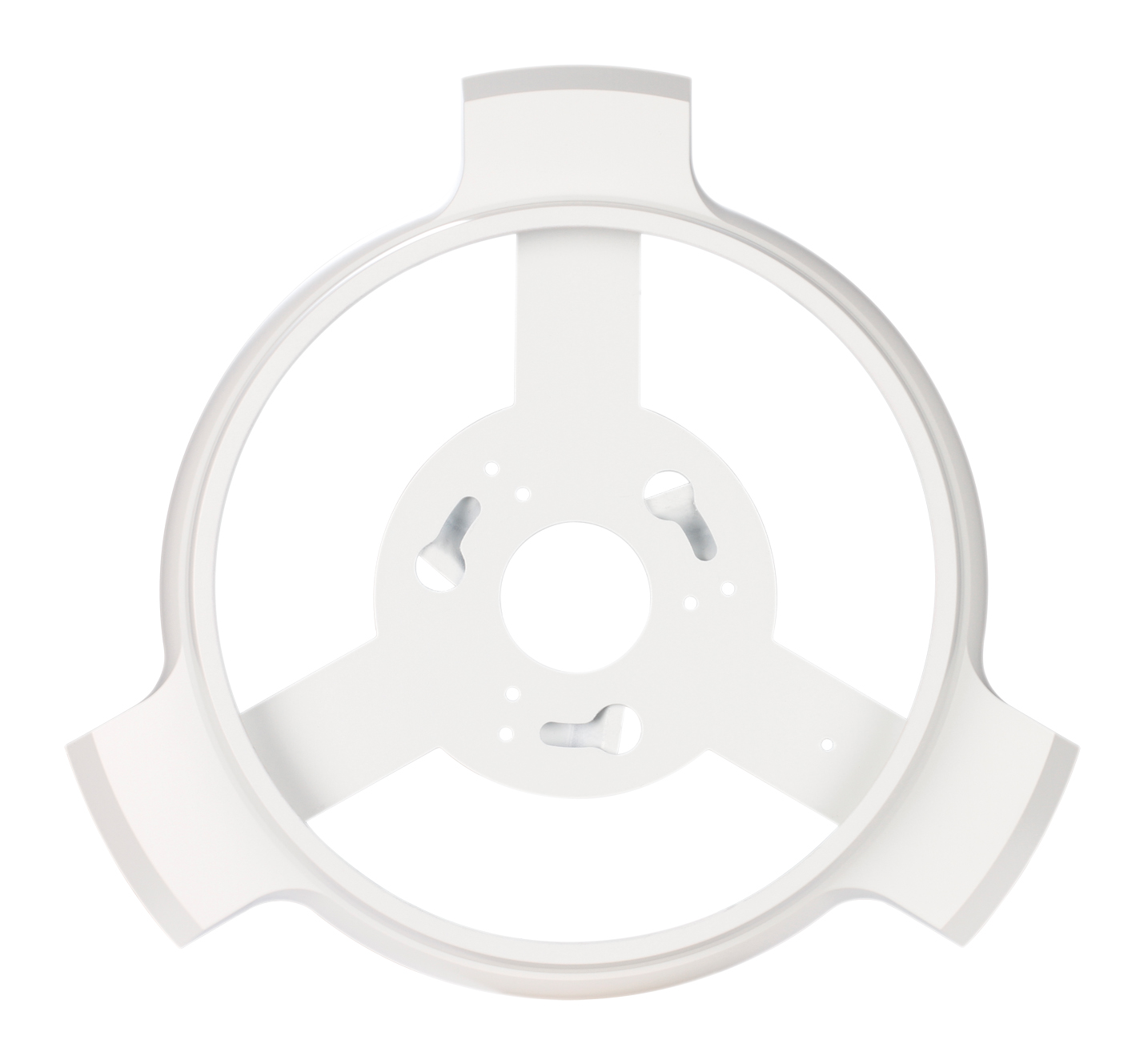

• DCS-33-2
• Height: 25 mm (0.98 inches)
• Diameter: 190 mm (7.48 inches)
• Weight: 167.5 g (0.36 lbs)
• DCS-33-3
• Height: 201 mm (7.91 inches)
• Diameter: 150 mm (5.90 inches)
• Weight: 534.7 g (1.17 lbs)
• DCS-33-4
• Height: 253 mm (9.96 inches)
• Diameter: 150 mm (5.90 inches)
• Weight: 640.7 g (1.41 lbs)
• Up to 30 Frames Per Second
• IR-Cut Removable (ICR) Filter for Day/ Night
• Support for multiple simultaneous streams
• Built-in Samba Client
• SD Card Slot
• Digital I/O support for Sensors and Alarms
• Built-in 802.3af PoE
• Advanced Security and Network Management
• 3 Configurable Privacy Masks
• Support for Motion Detection
• Flip & Mirror Images

3GPP Mobile Surveillance

Support for 3GPP Mobile Surveillance allows you to view a live video feed from your 3GPP compatible Internet-ready mobile device. This extends your monitoring capability, allowing you to check your camera’s video feed while on the go.

D-ViewCam™ Features

• Manage up to 32 cameras at once.
• Adjustable image size and quality.
• Custom recording schedules
• Event notifications
• Upload a customized floor plan

EVENT MANAGEMENT

• Motion detection by weekly schedule
• Event notification and upload snapshots/video
• clips via HTP, SMTP or FTP
• Multiple HTP, SMTP, or FTP server configuration
• Multiple event notification
• Multiple recording methods for easy backup
