D-Link

Control Module for DGS-6608 Managed Layer3+ Chassis Switch (576G)

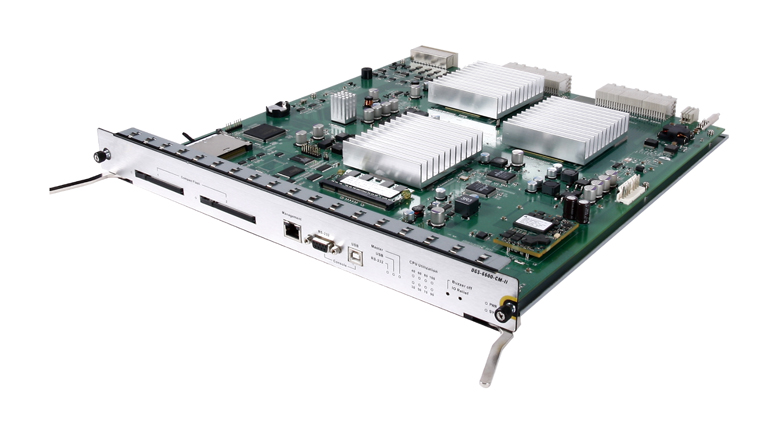

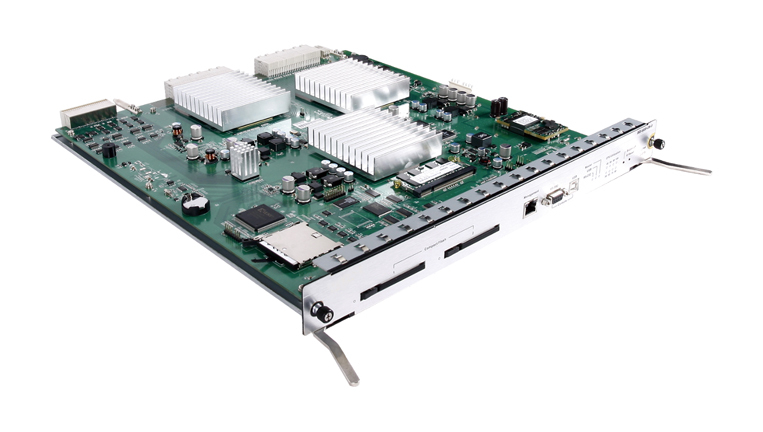

DGS-6600-CM-II

Designed for Enterprise LAN and MAN

Deployable as an enterprise aggregation switch or metro aggregation switch
Support IPv6, MPLS services
User-selectable AC and DC Power Supplies

Superior Performance

Switch fabric with up to 1,152 Tbps, 857 Mbps packet forwarding
Bottleneck-free distributed packet switching/routing
Intelligent line cards with on-board L2/L3/L4 switching controller

Flexible Modular Design

4-Slot and 8-Slot Chassis
Scalable expansion to288 10/100/1000BASE-T, 288 PoE, 288 SFP, or 96 10-Gigabit ports
Dual Control Modules/PowerSupplies

High Reliability

Up to 8 redundant load-sharing power modules
Hot-swappable line cards
Replaceable fan modules
802.1D/1w/1s Spanning Tree, 802.1AX, 802.3ad link aggregation
ERPS support
VRRP support

Security

L2/L3/L4 multi-layer access control
External RADIUS authentication support
SSH

Quality of Service

802.1p priority queues/multi-layer CoS
Committed information rate

Advanced Routing

Open Shortest Path First(OSPF)
Border Gateway Protocol(BGP)
Protocol Independent Multicast(PIM)

Future Proven IPv6

IPv6 Neighbor Discovery (ND)
IPv6 Tunneling
IPv6 Dynamic Routing

VPN Tunnel Service

VPWS(VLL)
VPLS

SPECIFICATION

L2 Features

32K MAC per I/O module
Flow Control (802.3x, HOL Blocking Prevention)
Jumbo Frame up to 9,732 Bytes
IGMP v1/v2/v3 Snooping (1K groups)
Spanning Tree (STP, RSTP, MSTP)
802.3ad Link Aggregation (128 groups, 8 ports per group)
Port Mirroring
RSPAN
ERPS (Ethernet Ring Protection Switching)
MLD v1 Snooping (1K groups)
Loopback Detection
L2 Protocol Tunneling

VLAN

4K VLAN
802.1Q Tagged VLAN
802.1v Protocol VLAN
Port-based VLAN
Double VLAN (Q-in-Q)

L3 Features

4K IP interface
VRRP
IPv6 Tunneling (manual, ISATAP, 6to4)
IPv6 Ready Phase
Proxy ARP
Gratuitous ARP

L3 Routing

12K hardware routing entries shared by IPv4/IPv6
8K hardware L3 forwarding entries shared by IPv4/IPv6
Policy-based Route
RIP v1/v2, RIPng
OSPF v2, v3
BGP v4, BGPv4+

L3 Multicasting

1K hardware multicast groups
PIM-DM
PIM-DM v6
PIM-SM
PIM-SM v6
PIM Sparse-Dense Mode
IGMP v1/v2/v3
DVMRP v3

QoS (Quality of Service)

802.1p Class of Service (CoS)
8 queues
Queue Handling:
Strict
Weighted Round Robin (WRR)
Strict+WRR
Deficit Round Robin (DRR)
Strict+DRR

CoS Based on:

Switch Port
VLAN ID
802.1p Priority Queues
MAC Address
IPv4/v6 Address
DSCP
Protocol Type
IPv6 Traffic Class
IPv6 Flow Label
TCP/UDP Port
User-defined Packet Content

Supports following actions for flows:

Remark 802.1p Priority Tag
Remark TOS/DSCP Tag
Bandwidth Control
Committed Information Rate (CIR), min. granularity 64Kbps
Port-based Bandwidth Control (Ingress/Egress, min. granularity 64 Kbps)
Time-based QoS

ACL (Access Control List)

Ingress / Egress ACL
ACL Based on
802.1p Priority
VLAN ID
MAC Address
IPv4/IPv6 Address or IP Prefix
DSCP/IP Precedence
IP Protocol Type
TCP/UDP Port Number
Combination of the above
Time-based ACL

Security

SSH v2
Port Security up to 16 MAC address per port
Broadcast/Multicast/Unicast Storm Control
DoS Attack Prevention
IP-MAC-Port Binding
ARP Spoofing Prevention
D-Link Safeguard Engine

AAA

802.1X
Port-based Access Control
MAC-based Access Control
Dynamic VLAN Assignment
3-Level user account
RADIUS Authentication for Switch Access
Guest VLAN
Web-based Access Control (WAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
MAC-based Access Control (MAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment

Management

Command Line Interface (CLI)
Telnet Server
Telnet Client
TFTP
DHCP Server
DHCP Relay
DHCP Relay option 82
SNMP v1/v2c/v3
SNMP Trap
System Log
RMON v1 (1,2,3,9 Groups)
Flash File System
Multiple Images
Multiple Configurations
Debug command
SNTP
Trusted Host
Microsoft® NLB Support
LLDP
sFlow

Green

Power Saving by Link status
Time-based PoE
