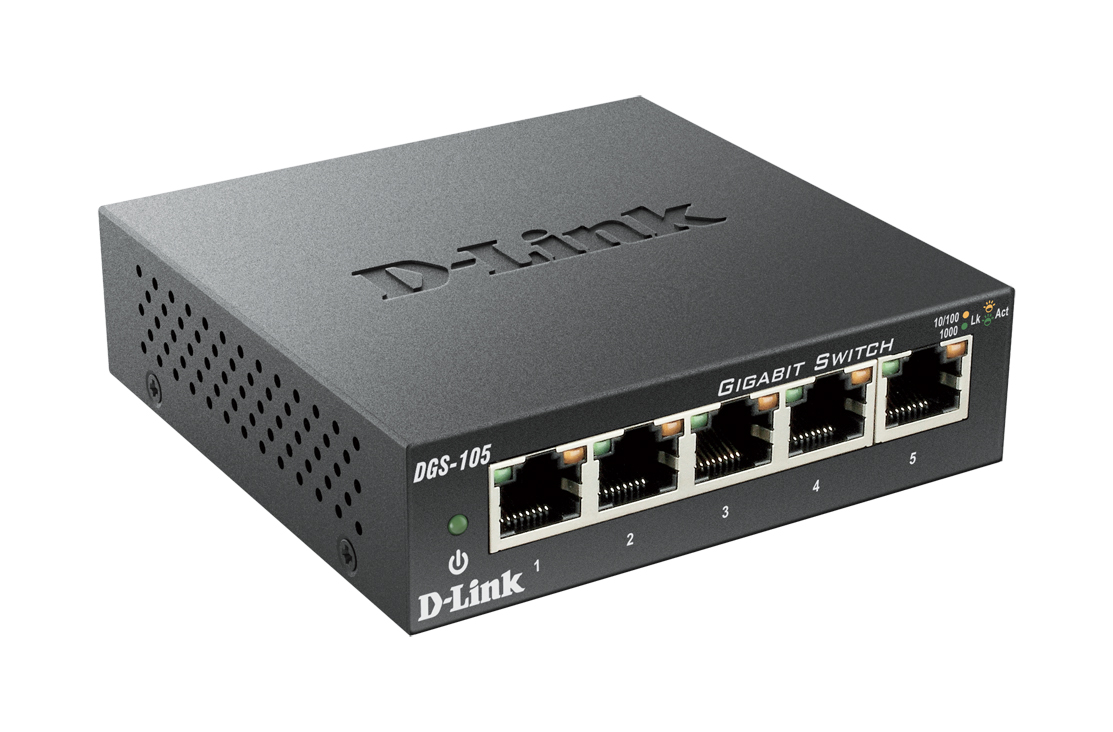

5-Port 10/100/1000 Mbps Unmanaged Switch
DGS-105
Integrated Network
The DGS-105/DGS-108 5/8-port Gigabit Switch uses auto-sensing 10/100/1000 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet and Gigabit devices to create an integrated network. These ports detect the network speed and autonegotiate between 10BASE-T and 100BASE-TX at full and half-duplex,and 1000BASE-TX at full duplex, allowing you to get the maximum speed possible for each device connected to your network.
Simplified Installation
All of the ports on the DGS-105/108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DGS-105/108 features multiple front, easy-to-access Ethernet ports with two color LED indicators per port to easily distinguish link status.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets, providing a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets, providing a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Think Green
The DGS-105/108 is a plug-and-play networking switch that uses D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a
substantial amount of power.
