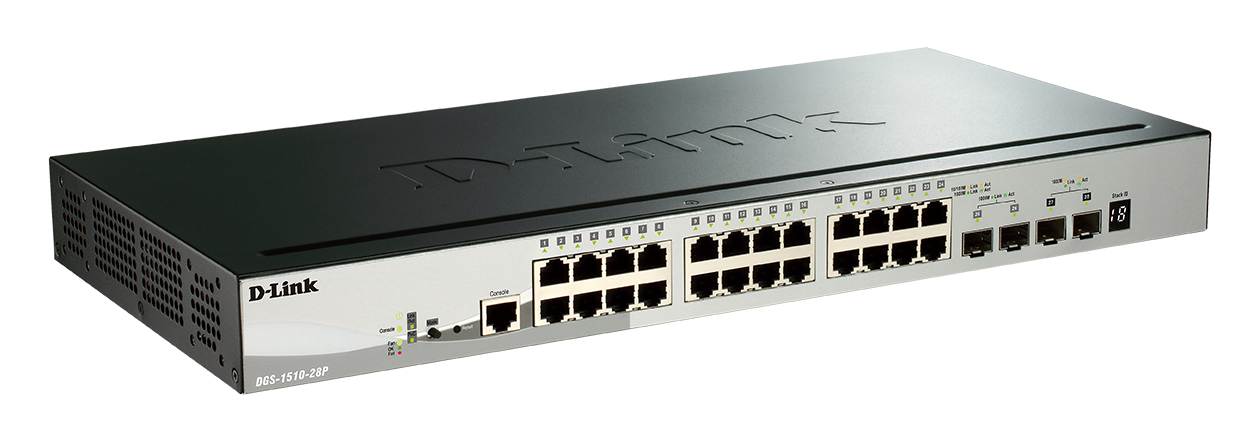

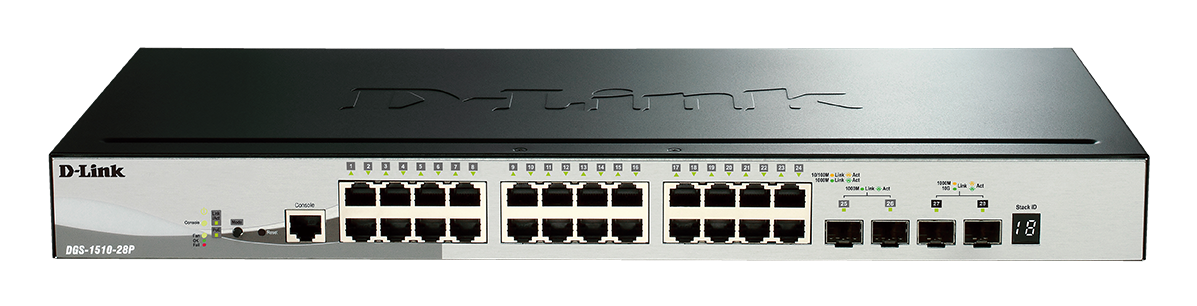

24 Ports 10/100/1000Base-T PoE with 2 SFP ports + 2 x 10G SFP+ ports Gigabit Smart Pro Switch

DGS-1510-28P

DGS-1510 Series includes switches SmartPro 10G ports and is the ideal solution for the deployment of networks of small and medium-sized enterprises (SME / SMB). DGS-1510 Series provides a reliable connection and makes it easy to scale the existing set.Kommutatory this series are equipped with 16, 24 or 48 ports of 10/100/1000 Mbit / s, as well as 2 or 4-port 10G SFP +, used for stacking or uplink-connection.

PoE switches are ideal for corporate clients in networks that use VoIP-services, wireless access points and network cameras. Switch DGS-1510-28P 24-port PoE supports 802.3at (up to 30 W output power per port) and provides power to the various devices with PoE, allowing you to expand the existing network as your business grows and put to use the latest technology without excessive costs.

10G SFP + ports used for stacking or uplink-connection
Depending on the topology implemented stacking (linear or circular) to create a physical stack users may use one or two ports 10-Gigabit SFP +. Using additional cables can be connected in a stack of up to 6 devices (288 Gigabit ports) and get a wide bandwidth at an affordable price. In addition, in one stack, you can use any series switches DGS-1510 in order to ease of configuration, management, and troubleshooting. Maintaining a speed of 20 Gbit / s in full duplex mode, the Switch DGS-1510 allows you to connect to the core network and servers, while providing high performance.

Traffic Management Level 3
Switches DGS-1510 series supports static routing, which creates an opportunity for communication between different groups of users in different segments of the VLAN in the network. Since the switches can control the routing within the local network, processing only external routing can be charged a network router.

Extensive Layer 2
Series Switches DGS-1510 series supports Layer 2 functions, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). IEEE 802.3x Flow Control allows you to directly connect the server to the switch for fast, reliable data transfer. The switches support function and Cable Diagnostics function Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port or VLAN, which detected a loop. Cable Diagnostics is designed to determine the quality of the copper cables and also the type of cable error.

QoS, bandwidth management
Switches DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, and are an ideal solution for deploying VoIP and video surveillance. Auto Surveillance VLAN - is a new, industry-leading technology, built-in switches Smart D-Link. This technology combines the video data and transmission through one switch SmartPro, reducing thus the cost of equipment and facilities. ASV also ensures quality video in real time and control, without prejudice to the transfer of conventional data network. The automatic determination of the connected equipment VoIP allows you to put "voice" traffic to a dedicated VLAN. With a higher priority and individual VLAN, this feature provides the quality and security of VoIP-traffic. In addition, DSCP marks Ethernet-packs with the appointment of the network traffic of different services. In addition, bandwidth management feature allows network administrators to reserve bandwidth for a variety of applications that require high bandwidth or might have high priority.

Network Security
Function D-Link Safeguard Engine protects the switches against traffic flooding caused by viruses. Authentication based on 802.1X port allows you to use an external RADIUS server to authenticate users.
In addition, the Access Control List (ACL) feature enhances network security and helps protect your network by filtering traffic from unauthorized MAC-addresses or IP-addresses.
Switches DGS-1510 series support the prevention of attacks ARP Spoofing, protects from attacks on an Ethernet, which can cause a change in traffic or delay by sending fake ARP-messages. To prevent ARP Spoofing attacks, the switch uses the Packet Control ACLs to block packets containing false ARP-message. For added security feature DHCP Server Screening, deny access to unauthorized DHCP-servers.

Support for IPv6
In a series of DGS-1510 supports functional IPv6, including MLD Snooping, IPv6 ACL / QoS and IMPB (IP-MAC-Port Binding), which promotes easy equipment integration in the next generation network. In addition, this series supports both protocol stacks IPv4 / v6, allowing switches to act as a bridge between IPv4 and IPv6.

Management flexibility
DGS-1510 Series supports the Single IP Management (SIM), which allows you to manage a virtual stack of 32 devices via one IP-address. This feature greatly simplifies the management of both small workgroups and telecommunication centers, while allowing the network to scale and to increase the capacity if necessary.
Using the Web-based switch management DGS-1510 series and utility D-Link Network Assistant allows administrators to remotely manage the network at the port level. Utility D-Link Network Assistant supports automatic detection and display on the D-Link switches Series Web Smart, belonging to the same network segment L2. Web-based interface provides access to the switch from anywhere on the network without the need to enter IP-address or subnet mask that allows you to configure and basic installation of found devices, including password change and update software.
Switches DGS-1510 Series also supports a command line interface (CLI) and SNMP MIB, enabling centralized management of a large network. Management command-line interface (CLI) through the console port and Telnet. Due to the presence on the switch console port connection to it is possible even in the case of high network load.

Saving energy
Switches DGS-1510 Series support JavaScript D-Link Green 3.0, which provides energy savings without sacrificing performance and functionality of the devices. Support for 802.3az Energy Efficient Ethernet allows you to automatically reduce power consumption during low traffic. The power saving feature automatically powers down ports, turn off the indicator and the transition of the system into sleep mode during limited hours. Schedule can also be applied to a switch that supports PoE, thus avoiding unnecessary energy consumption during the downturn.
