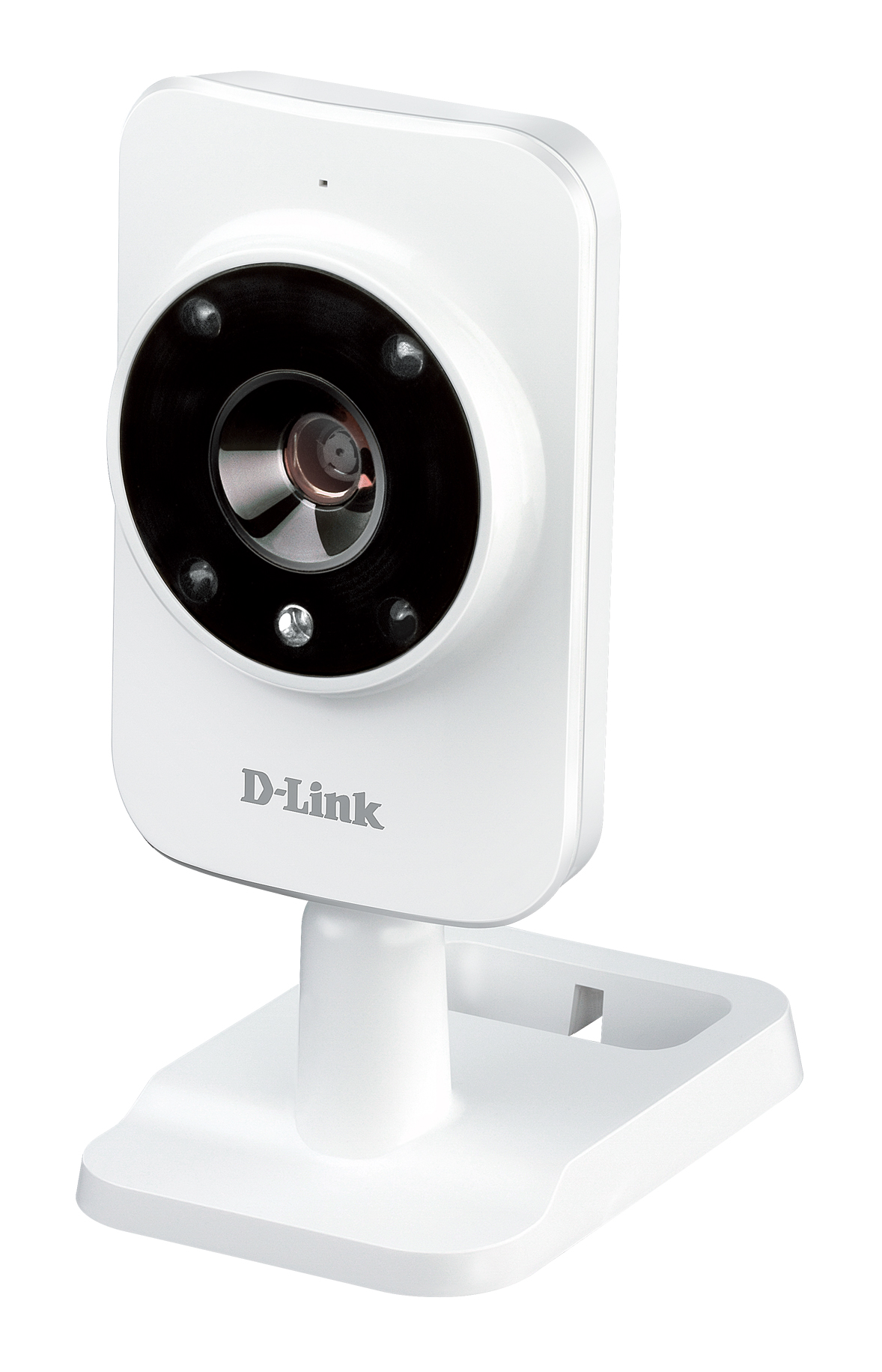

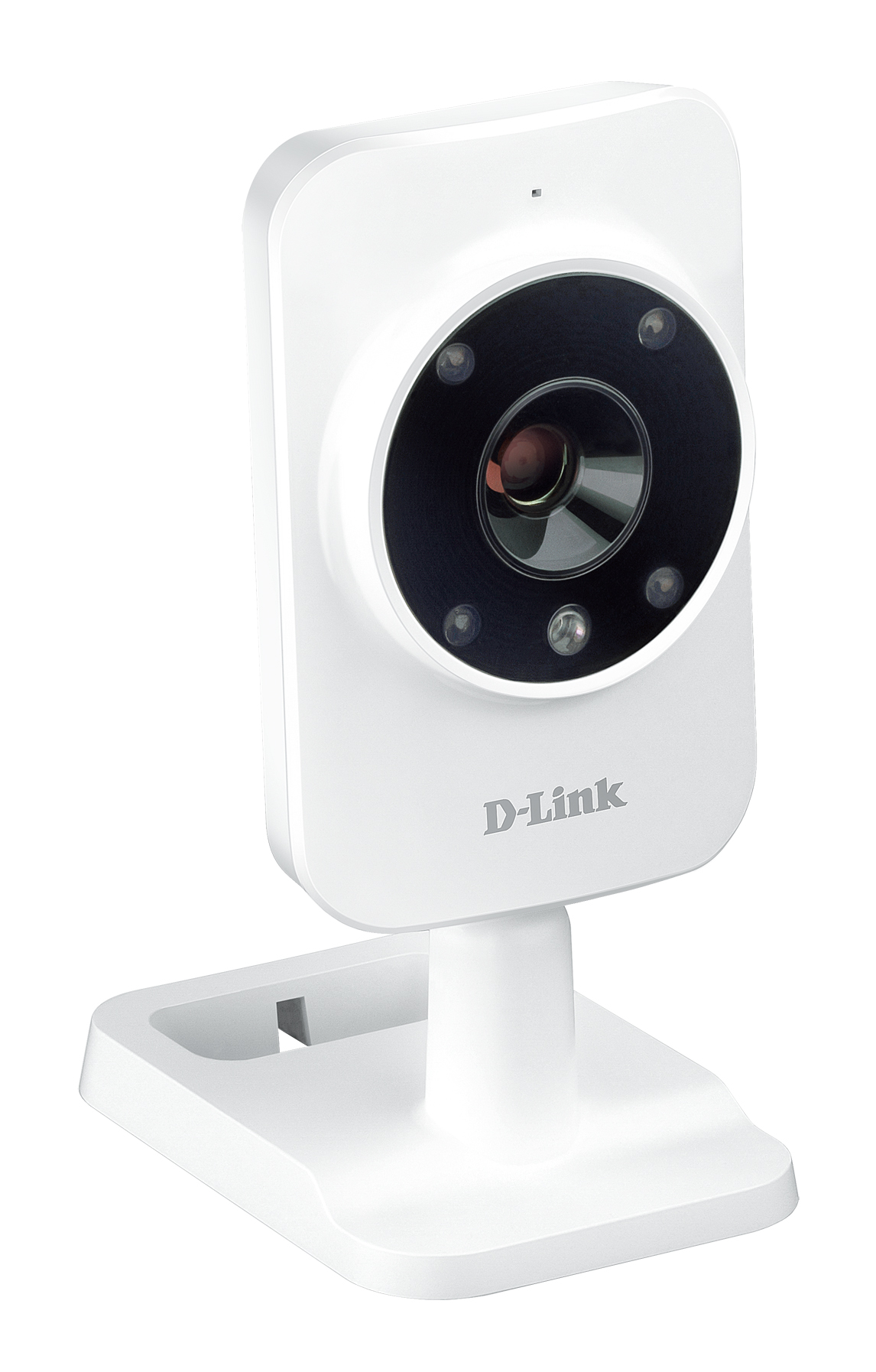

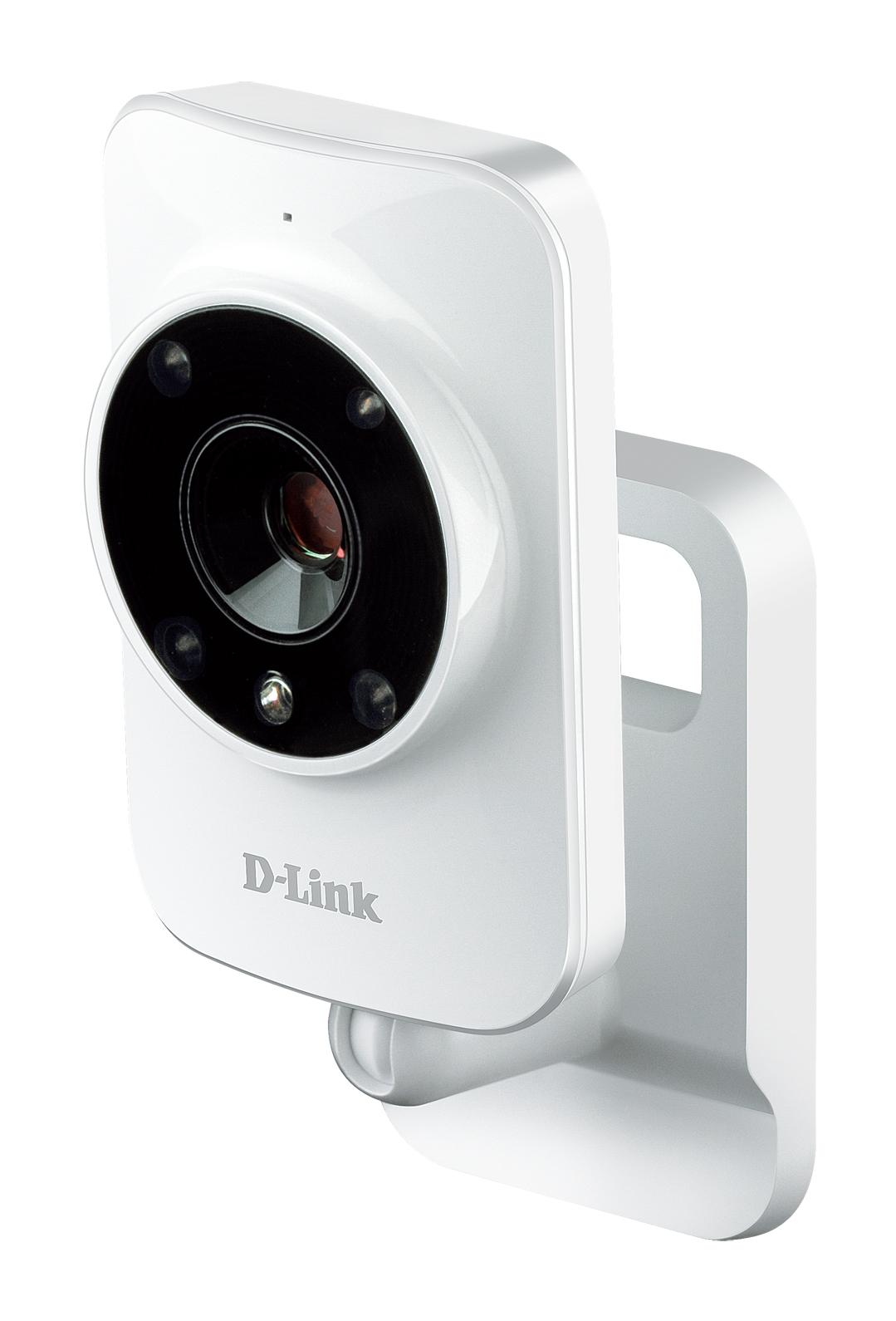

Meet the HD
Wi-Fi Camera.

SPECIFICATION

Camera  Hardware Profile

• 1/4” Megapixel progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination: 0 lux with IR LEDs on
• Built-in Infrared-Cut Removable (ICR) Filter module
• 4X digital zoom
• Lens: Fixed length 2.38 mm
• Aperture: F2.4
• Angle of view:
  • (H) 78.44°
  • (V) 47.9°
  • (D) 85.98°
• Minimum object distance: 434 mm
• Exposure Time: 1/7.5 to 1/24,000 sec.
• Built-in microphone

Image Features

• Configurable image size, quality, frame rate, and bit rate
• Configurable brightness, contrast, sharpness, saturation and hue
• Configurable motion detection windows
• Time stamp and text overlays

Video Compression

• Simultaneous H.264/MJPEG format compression
• JPEG for still images

Video Resolution

• 1280 x 720, 800 x 600, 720 x 480, 640 x 480, 320 x 240 at frame rates up to 30 fps

Audio Compression

• AAC
• G.711

Connectivity

• 802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption
• Operates on 2.4 GHz and 5 GHz bands
• Maximum data rate of 433 Mbps (PHY rate)2

Network

Network Protocols

• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• RTP, RTSP, RTCP
• UPnP Port Forwarding
• HTTPS for configuration
• Bonjour

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest authentication

Advanced Features

System Requirements for Web Interfaces

• Operating system: Microsoft Windows 8/7/Vista/XP SP3 or Mac OS X 10.6 or higher
• Browser: Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher

Event Management

• Motion detection
• Sound level detection
• Event notification and uploading of snapshots/video clips via SMTP or FTP

Remote Access

Remote Management

• Configuration accessible via web browser

Mobile support

• mydlink ™Home app for iOS and Android¹

General

Dimensions

• 58.0 x 84.5 x 124.9 mm (2.28 inches x 3.33 inches x 4.92 inches)

Weight

• 160.0 g (5.6 ounces) ± 5%

Power

• 5 V DC 1.2 A, 50/60 Hz

Power Consumption

• 3.5 watts maximum

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70? C (-4 to 158 ?F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC Class B
• C-Tick
